1976
null

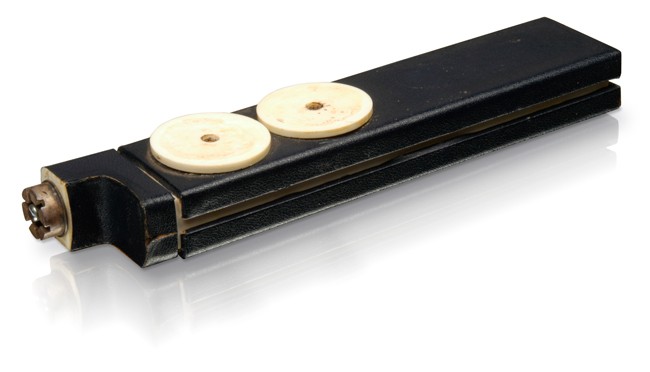

ENS-01

The first model for practical use.

Casing was made of ABS plastic sheet, glued with dichloromethane and decorated with leatherette.

Two slide controls — “energy” and “frequency”.

Electrode was round-shaped, coaxial. Detachable!!!

Indication: one LED displaying action energy level.

Power supply: built-in accumulators.

* out of production at the moment

1985
null

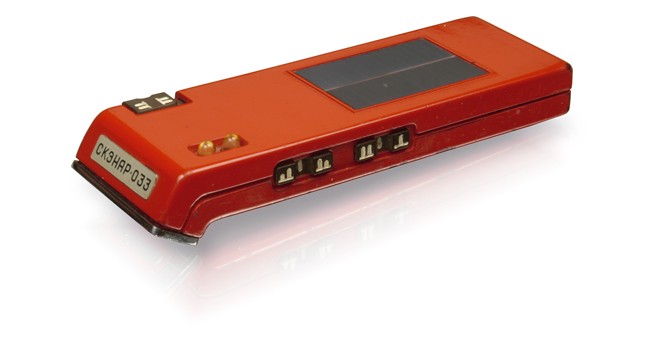

SCENAR-033

The first device named SCENAR. It was developed for serial production at the “Priboy” factory (Taganrog). The casing was milled out of one solid piece of Plexiglas. The casing was 0.7—1.5mm thick and bent in the region of the electrode to make it more convenient to use. This was full imitation of molded plastic. In fact, this casing was much better than the real plastic one which would be made later.

Electrode: coaxial, rectangular, with little “bumps” on the surface to provide better contact of the electrode with skin on the hairy areas.

Digital multistep control of energy with “up” and “down” buttons. This device had only two frequencies of action which could be selected with the buttons. Two LEDs indicated energy level and frequency.

New switch — switched on pauses to make expert evaluation.

Power supply: built-in accumulator was charged from solar batteries which were developed specially for this device — one silicon wafer produced 15V instead of usual 0.4V!

* out of production at the moment

1987
null

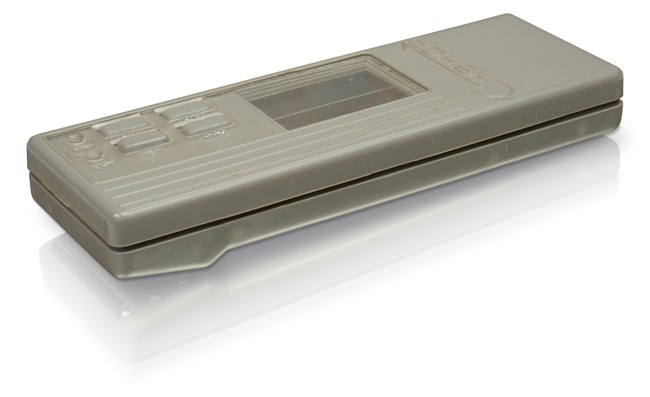

SCENAR-032

In this modification we took into account all “advantages” of soviet manufacturing (one should not make bent casings, very dense mounting, little “bumps” on the electrodes and electrodes of such complicated shape and many other “should not’s”).

Casing was made of ABS plastic with straight section line between the upper and lower parts of the casing.

Electrodes were reduced to three metal strips (“three pathways”).

Buttons relocated from the side to the top of the casing. All the rest operating controls remained the same.

Power supply: replaceable accumulator which could be charged from both solar battery and charging unit.

* out of production at the moment

1988
null

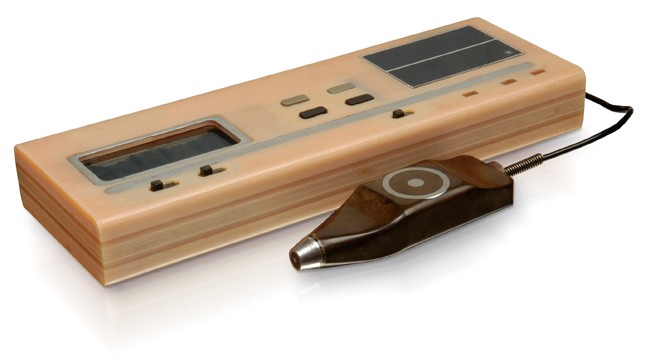

Т4-01 “Lhotse”

Back in Krasnodar times Alexander Karasev started mountain climbing (the Caucasus was nearby). He could not pass over his fellow climbers. Frostbites, hypoxia, ultraviolet burns or any disease in the mountains can be a catastrophe. Specially for them, he made one and only device — SCENAR T4-01 “Lhotse” powered by solar battery. This is the first device which was taken to the mountains and was used during expedition to Lhotse (Nepal). Even the casing was made by Alexander Karasev himself on the milling machine.

Casing was milled out of one solid piece of vinyl plastic and sealed up.

This device had only remote electrode.

Energy regulation: digital, multistep, with “up” and “down” buttons. Button for switching the “depth”, button for switching the frequency.

Three LEDs displayed energy, frequency, and battery charging status. Plus LCD indicator — it showed energy and expert evaluation.

Power supply: built-in accumulator charging from the solar battery.

* out of production at the moment

1989
null

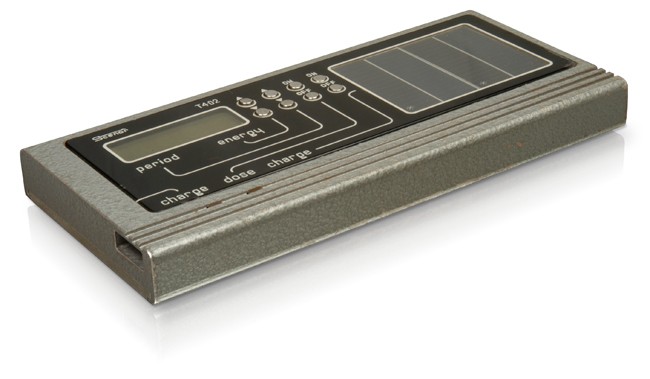

SCENAR Т4-02

The casing was milled out of one solid piece of aluminium. It was so robust that could be used as defence against racketeering, in case of need.

All the rest was the same as in T4-01.

This device was specially designed for use at medical cooperative institutions.

* out of production at the moment

1990
null

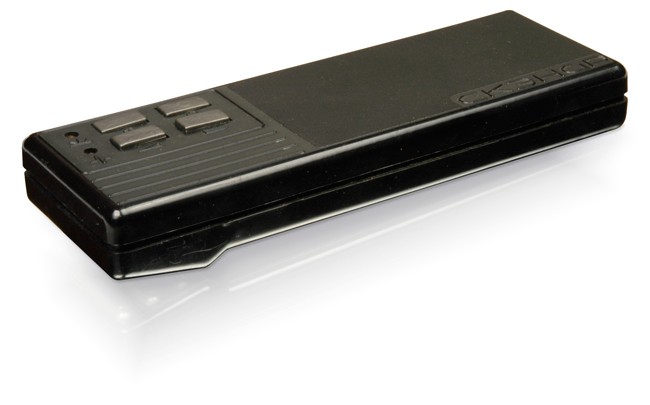

SCENAR 035

A. A. Karasev founded Research Laboratory of Medical Electronics “LET Medical”.

This is a modification of the 032 , which was made specially for serial production at “ARKAIM” enterprise (Essentuki).

Solar batteries were removed, power supply became exchangeable – one galvanic cell, size AA.

Absolutely all devices of this series were tuned by Alexander Karasev personally… as well as all other devices produced up to now.

* out of production at the moment

1992
null

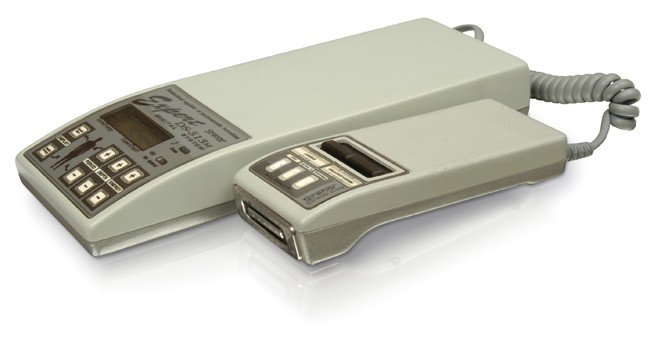

SCENAR DS513. Professional model

Casing was made of carbon-filled plastic.

To improve the action, output stages were placed in the remote electrode. This is the first device which was built completely with digital components — over 100 microcircuits of SSI and MSI level.

Digital LCD display, multistep regulation of energy and frequency. Mulstistep control of the action “depth” was implemented for the first time in this device. Remote electrode had two output stages. Two paravertebral electrodes in the form of two plates on the under side of the casing of the remote electrode, like in ENS-03 . Appearance of the device was designed by Alexander Karasev, he modeled it within 2 hours.

In modification 513М we made first attempts to implement different types of action: S1 (SCENAR) and S2 (which will become COSMODIC later).

Power supply: built-in accumulators and built-in all-mains charger.

* out of production at the moment

1993
null

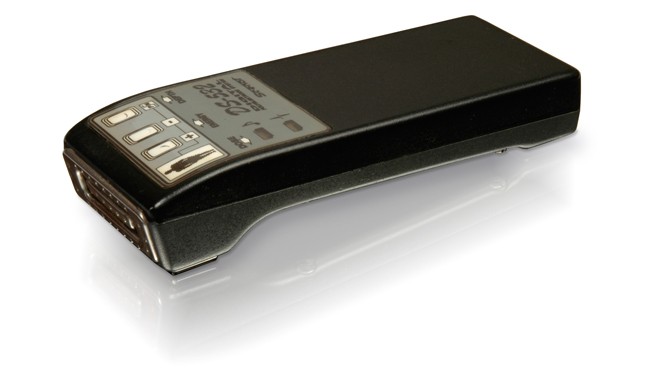

SCENAR DS532М

First device for personal use.

Casing was the same as in the remote electrode of the 513 .

This device was built completely with digital components, which were mounted very densely on the circuit board.

Only energy level and frequency could be regulated.

Power supply: built-in accumulator, built-in charger, charging from power adapter.

* out of production at the moment

1994
null

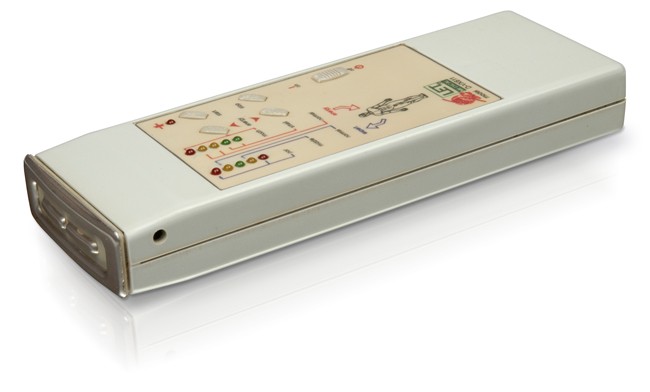

SCENAR D-VX611

Casing: ABS plastic, “Teko” company (Italy).

The device is built on two LSI’s made by “Intel”. One LSI was responsible for action, the other — for expert evaluation.

Indication: LEDs displayed energy level, action mode, and expert evaluation. Two action modes — continuous and intermittent.

Power supply: replaceable galvanic cells or accumulators, size AA.

* out of production at the moment

null

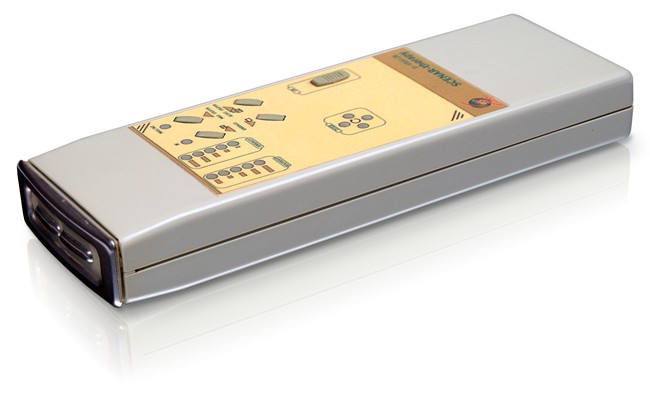

SCENAR D-VX612

This is a modification of the 611, but now it is built with one LSI (again “Intel”) of larger capacity. This provided the device with its famous “indestructibility” and robustness.

The socket for connection of remote electrodes which was implemented in this device became a standard for all other manufacturers.

* out of production at the moment

null

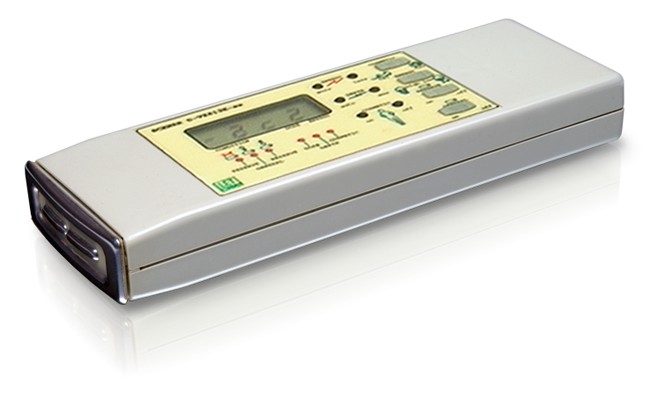

SCENAR D-VX613

This is neither modification of the 611 or the 612, though casing is the same.

Two output stages with automatic switch-over.

Two-line character LCD-display showed all operating modes and expert evaluation. This is the first device where expert evaluation was displayed on LCD indicator.

Power supply: built-in rechargeable accumulator (recharged automatically from the replaceable accumulators and mostly served as backup battery, i. e. the device would work even if the replaceable accumulators were down or taken out). Basic accumulators were replaceable — two galvanic cells or rechargeable batteries, size AA.

* out of production at the moment

null

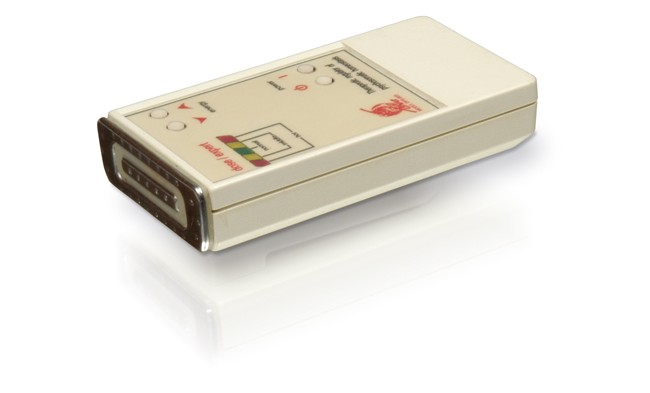

SCENAR D-PS603

The first casing from OKW company, ABS plastic.

This is the smallest device ever produced before. No one had ever made a device smaller than this. It is a smaller copy of the 612. The same LSI but in a smaller size casing.

Power supply was special: galvanic cells of size N.

* out of production at the moment

Our days
null

RITMSCENAR Super Pro

This is the current upgrade for the most versatile professional device developed in transition to the new generation of SCENAR devices. It includes all the most important functions for professional use. As compared with the previous version of the device (RITMSCENAR Pro Plus), its functionality is extended to include the third mode of screening (Dose 5) — screening with the local electrode. The most important ’know-how’ of the device is the mode of double biofeedback that allows determining necessary stimulation parameters in acute states in the automatic mode.

SHOP

null

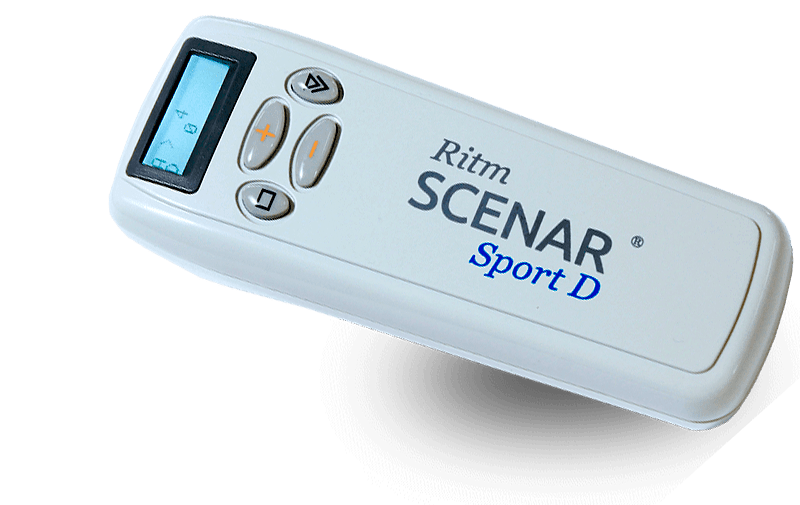

RITMSCENAR Sport D

The RITMSCENAR Sport D is one of the newest models in the personal SCENAR devices family. It is identical in functions to the RITMSCENAR Sport model but is equipped with a LCD screen. The small screen displays energy strength, current settings and skin contact indication which make the device very easy to use and operate.
null

RITMSCENAR Sport

This is one of the most popular versions of the personal devices. This device provides a large set of functions that allows its user to realize all possibilities of SCENAR-therapy.

SHOP

null

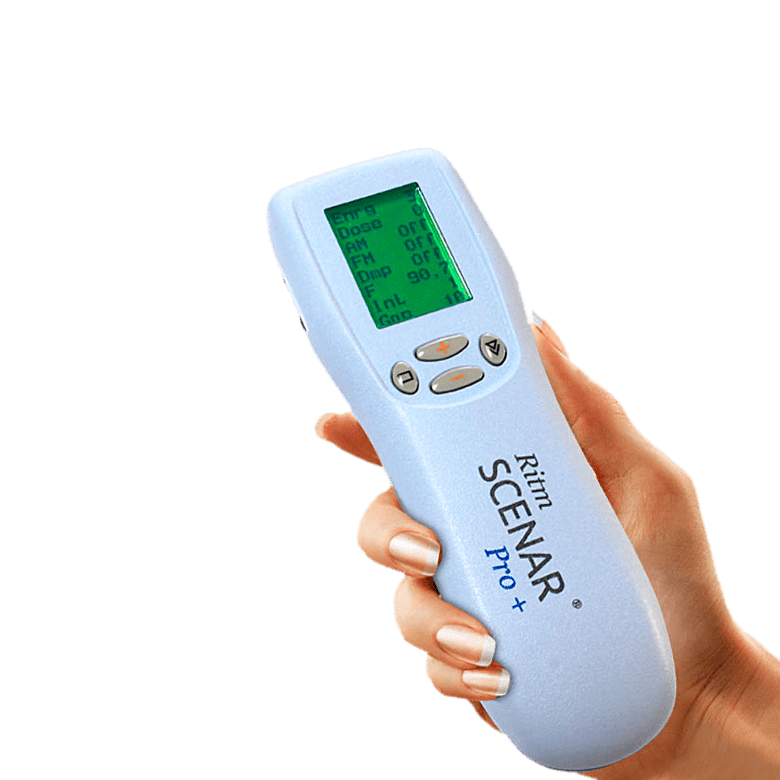

RITMSCENAR PRO Plus

RITMSCENAR Pro Plus is a light-weight, portable, easy to use, multifunctional and powerful SCENAR device designed for advanced users to provide non-invasive, specialist SCENAR therapy interactive electrical stimulation via the patient’s skin.

SCENAR technology has been proven to provide quick and sustainable pain relief in a wide range of painful conditions, increased function, and quicker rehabilitation.
